TIRTL Sensor Evidence Graph Pack

Version 3.2. Exact source-site and site-heading graphs for the Western Freight Infrastructure Accountability companion.

Grey headings are other records at the same source-site ID that were not selected for the corridor metric; grey does not mean defective or unreliable.

Return to companion page

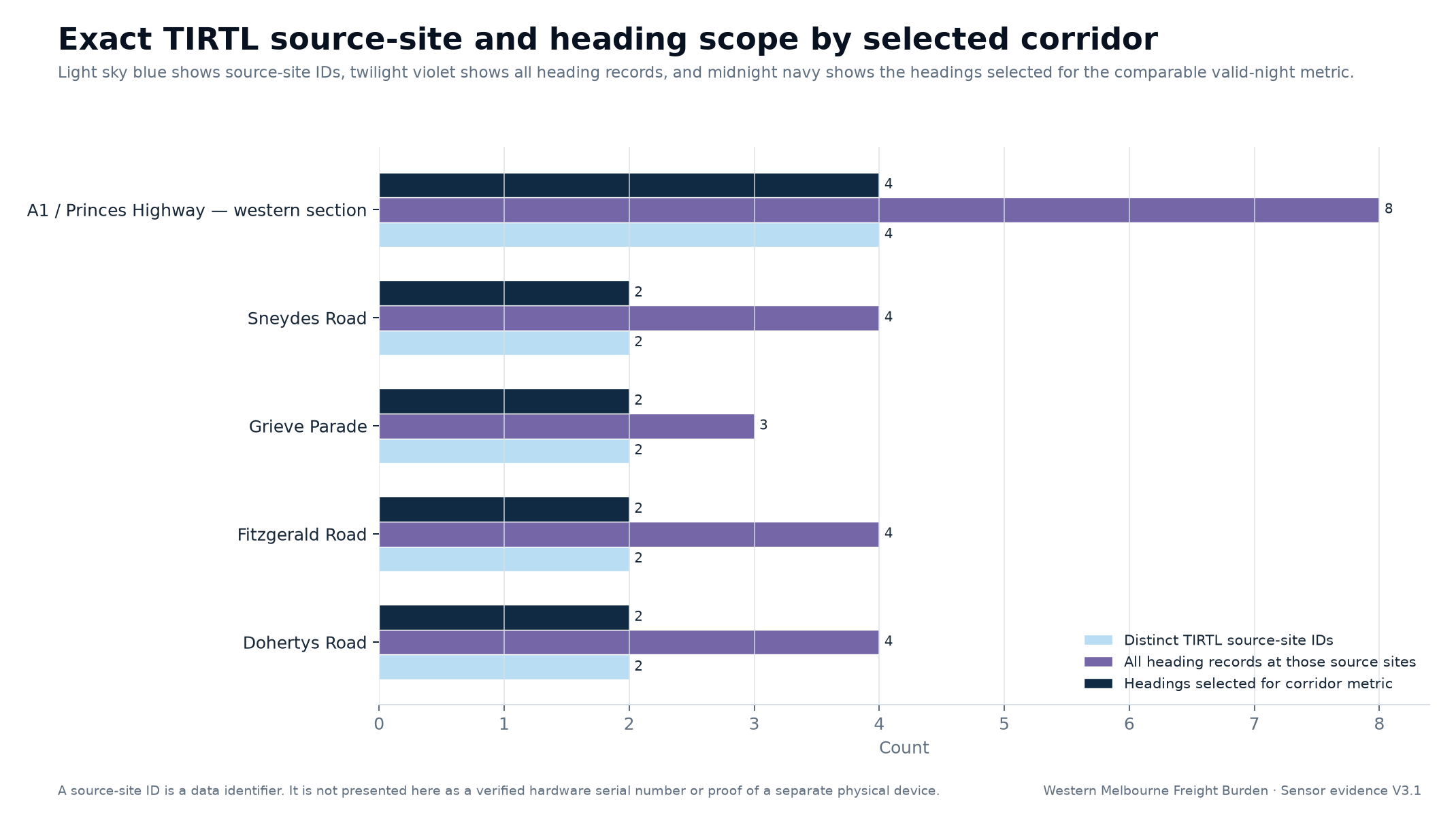

Exact TIRTL source-site and heading scopeHeadline

Exact TIRTL source-site and heading scope

Distinct TIRTL source-site IDs, all associated heading records, and headings selected for the valid-night metric.

SVG

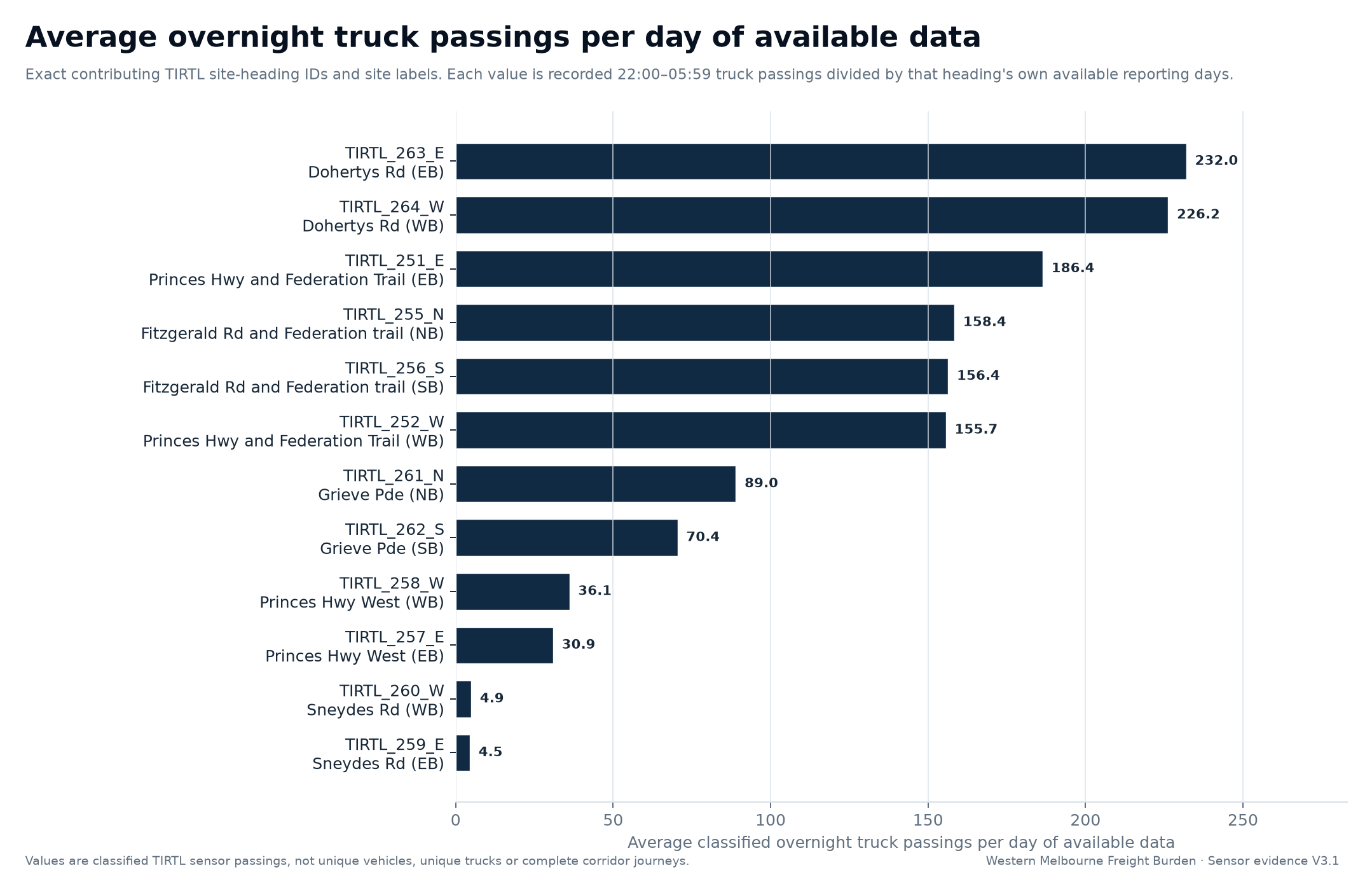

Average overnight passings by exact headingHeadline

Average overnight passings by exact heading

Average classified overnight truck passings per day of available data for every heading selected for the corridor metrics.

SVG

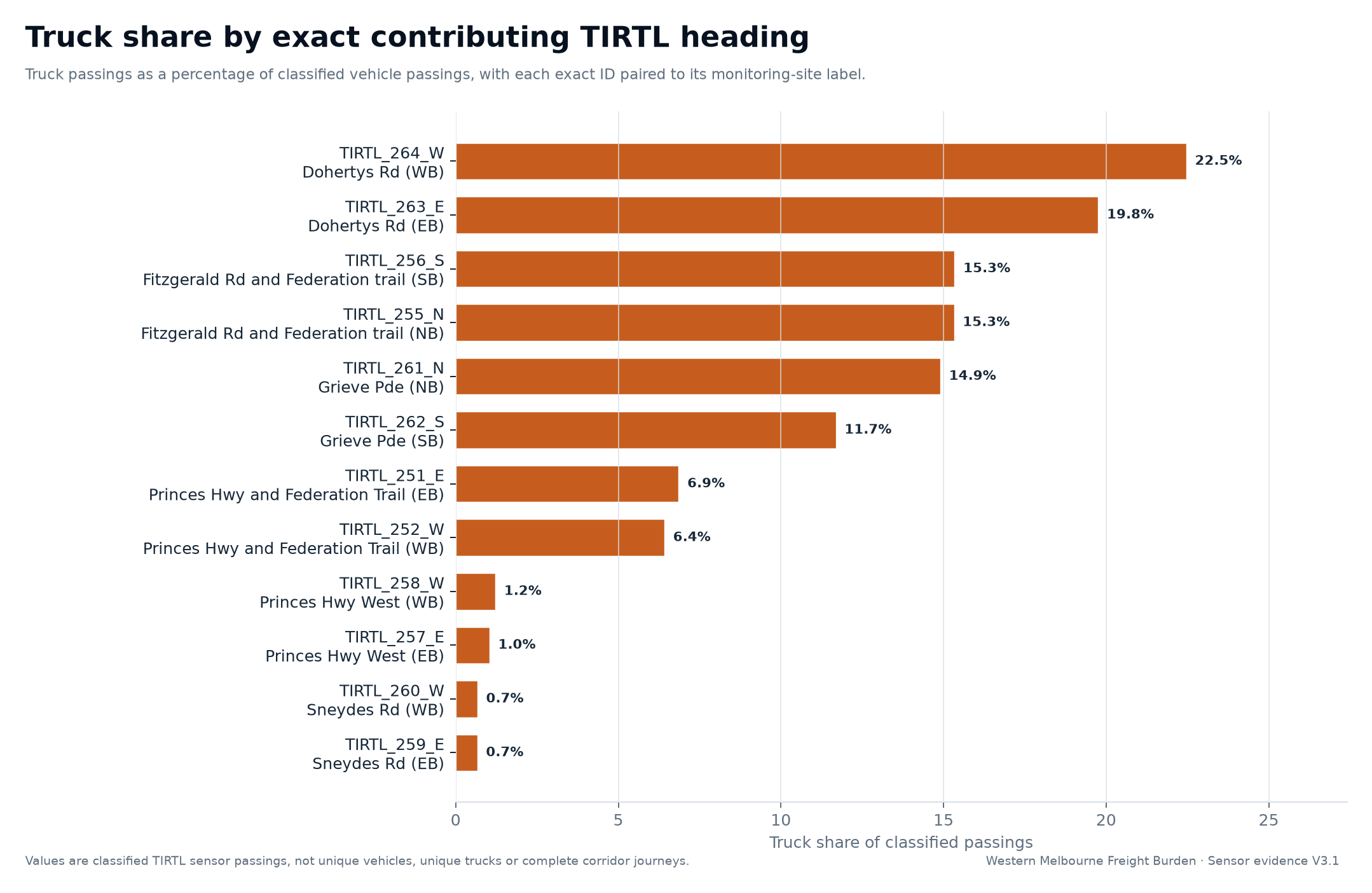

Truck share by exact headingHeadline

Truck share by exact heading

Truck share for every exact heading selected for the valid-night corridor metrics.

SVG

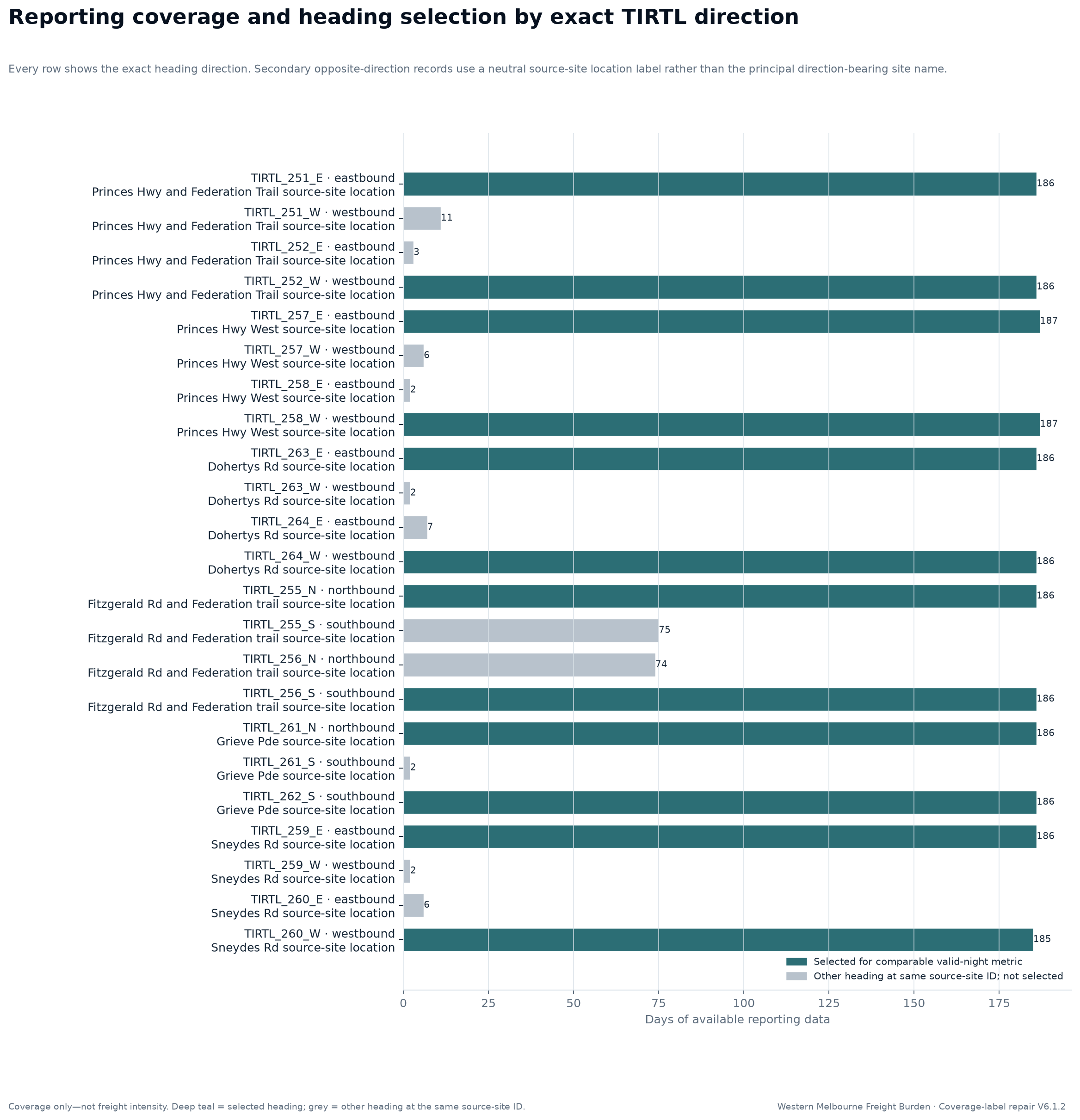

Coverage and heading-selection auditTechnical

Coverage and heading-selection audit

Every heading at the relevant source-site IDs. Grey means not selected for the corridor metric, not defective or unreliable.

SVG

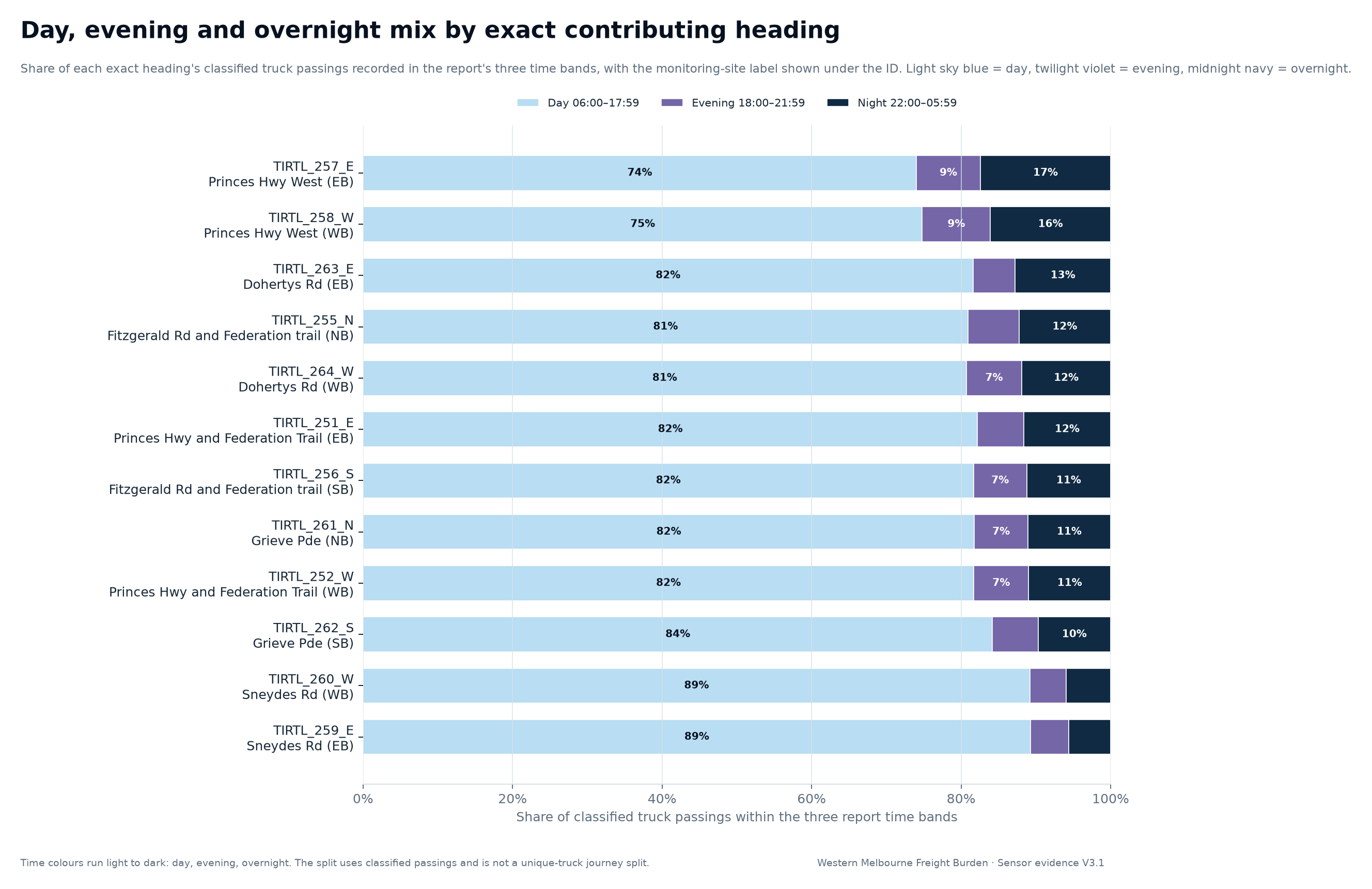

Time-band mix by exact headingHeadline

Time-band mix by exact heading

Day, evening and overnight composition for every exact heading selected for the metrics.

SVG

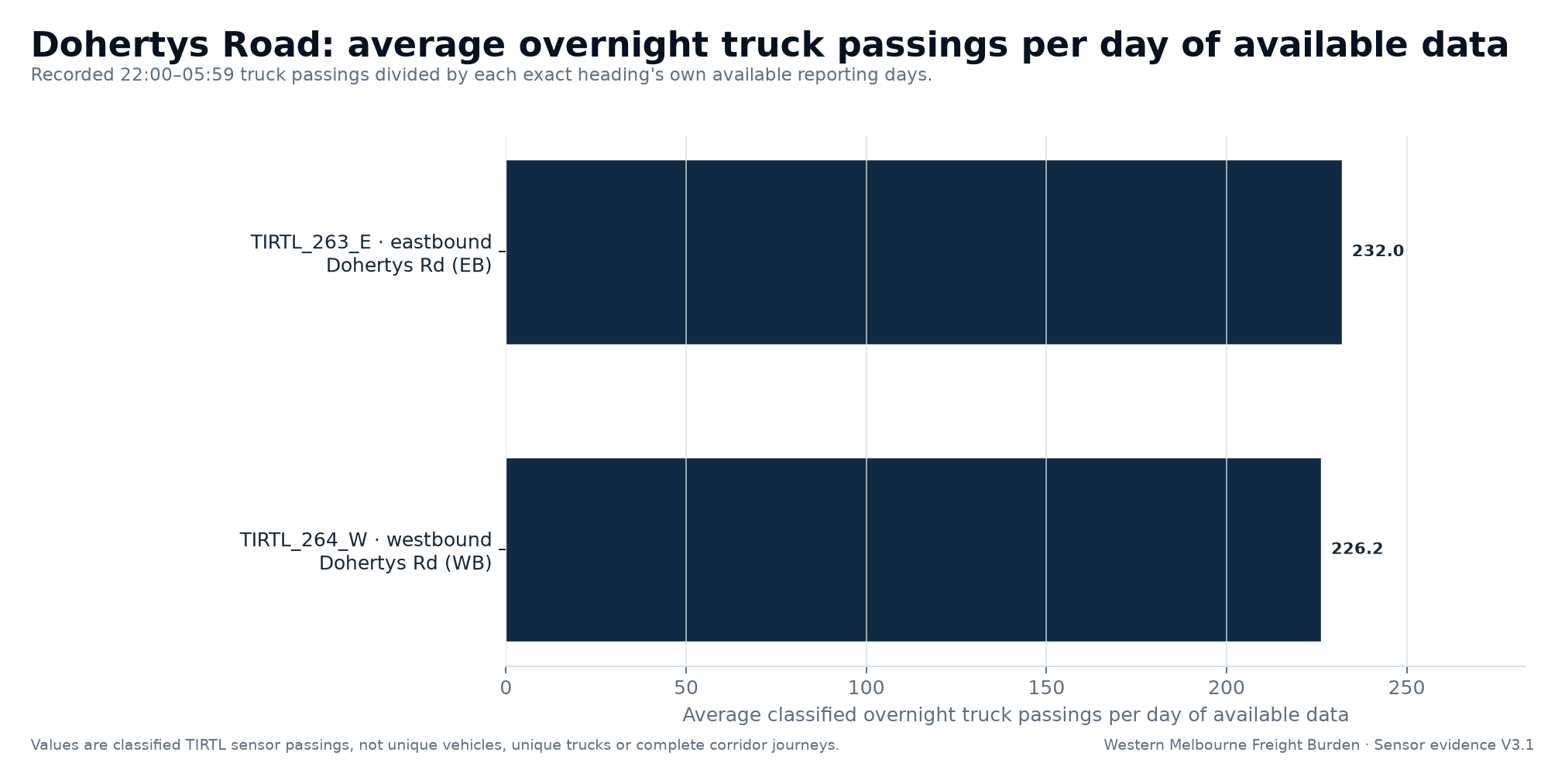

Dohertys Road: average overnight passingsHeadline

Dohertys Road: average overnight passings

Average overnight truck passings per day of available data by exact contributing site-heading ID and location label.

SVG

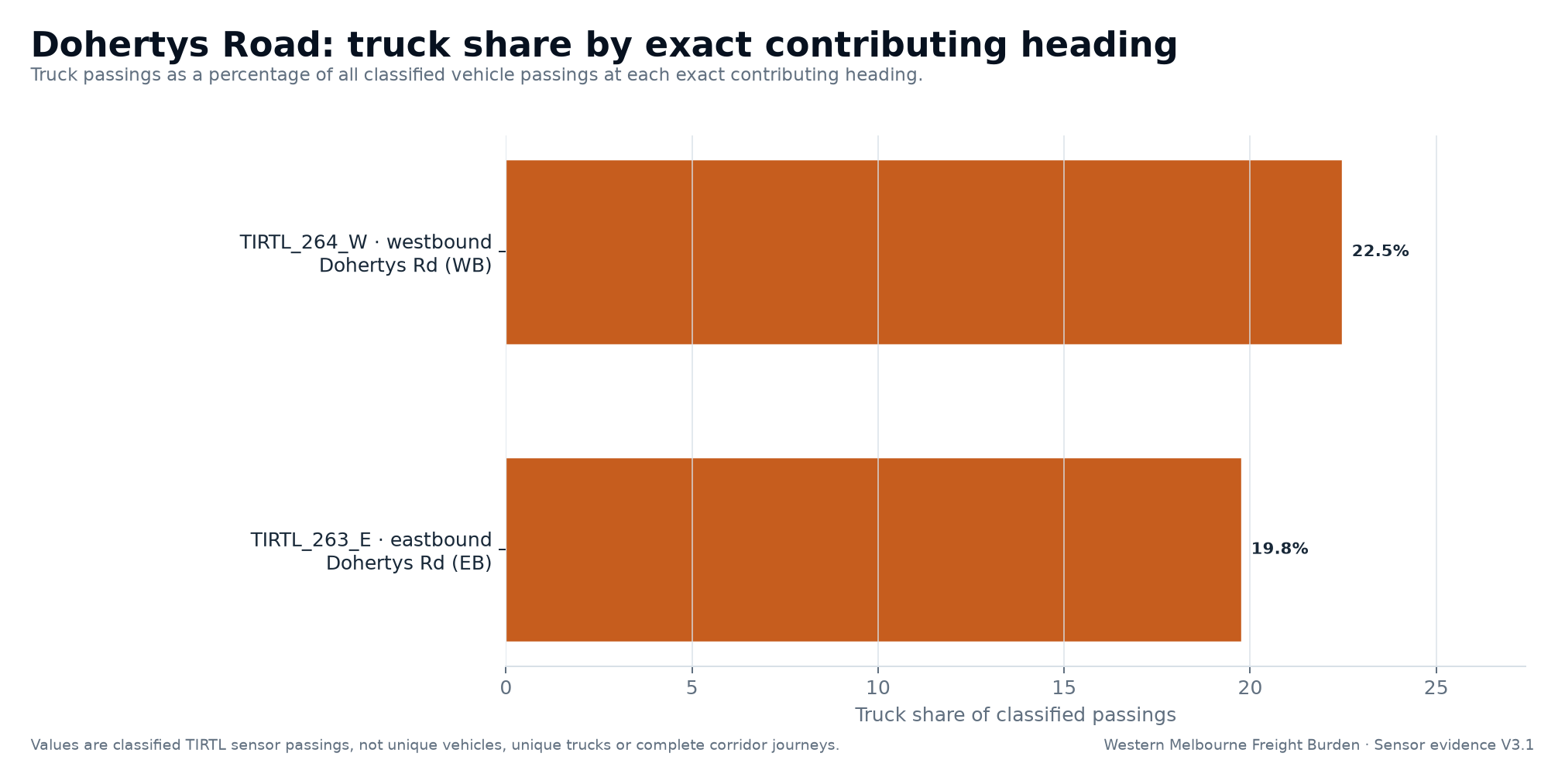

Dohertys Road: truck shareHeadline

Dohertys Road: truck share

Truck passings as a share of classified movements at each exact contributing heading.

SVG

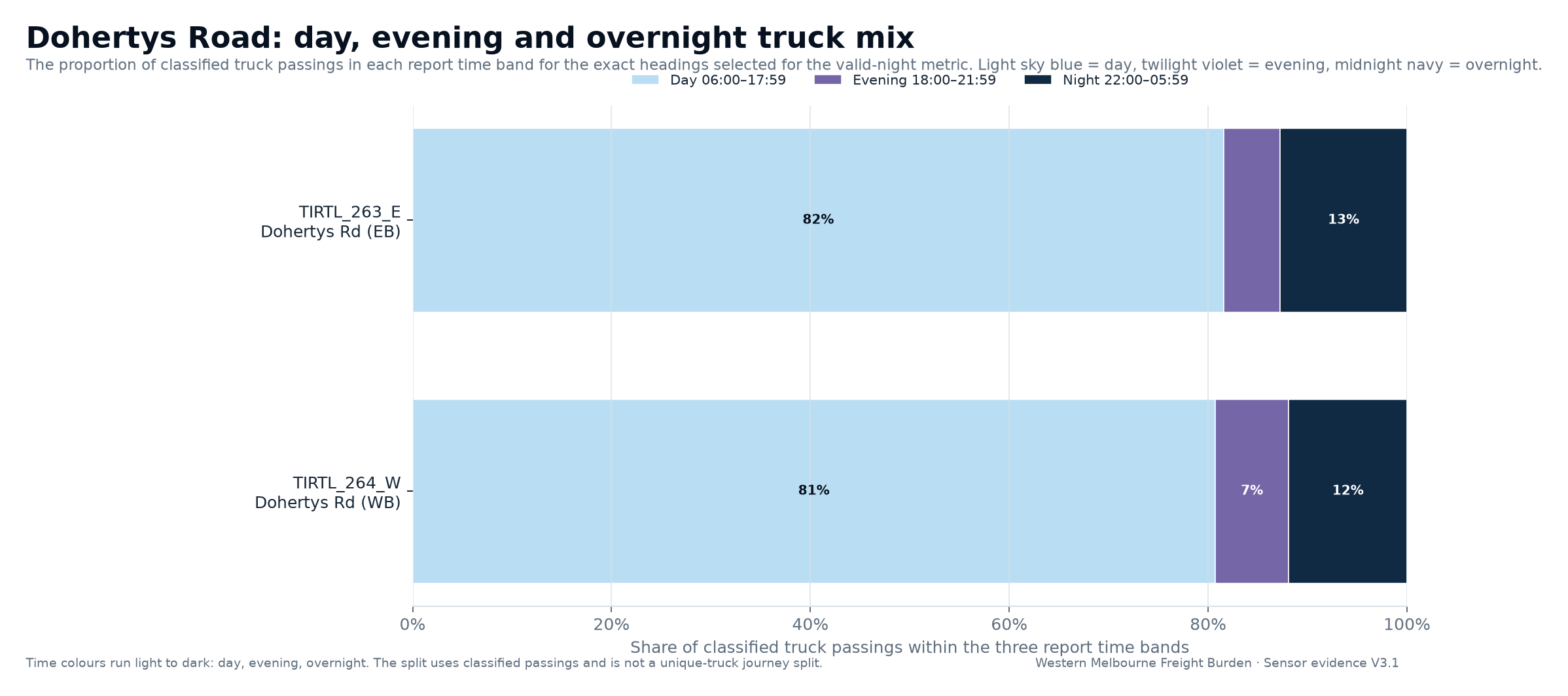

Dohertys Road: time-band mixHeadline

Dohertys Road: time-band mix

Day, evening and overnight composition by exact contributing heading and monitoring-site label.

SVG

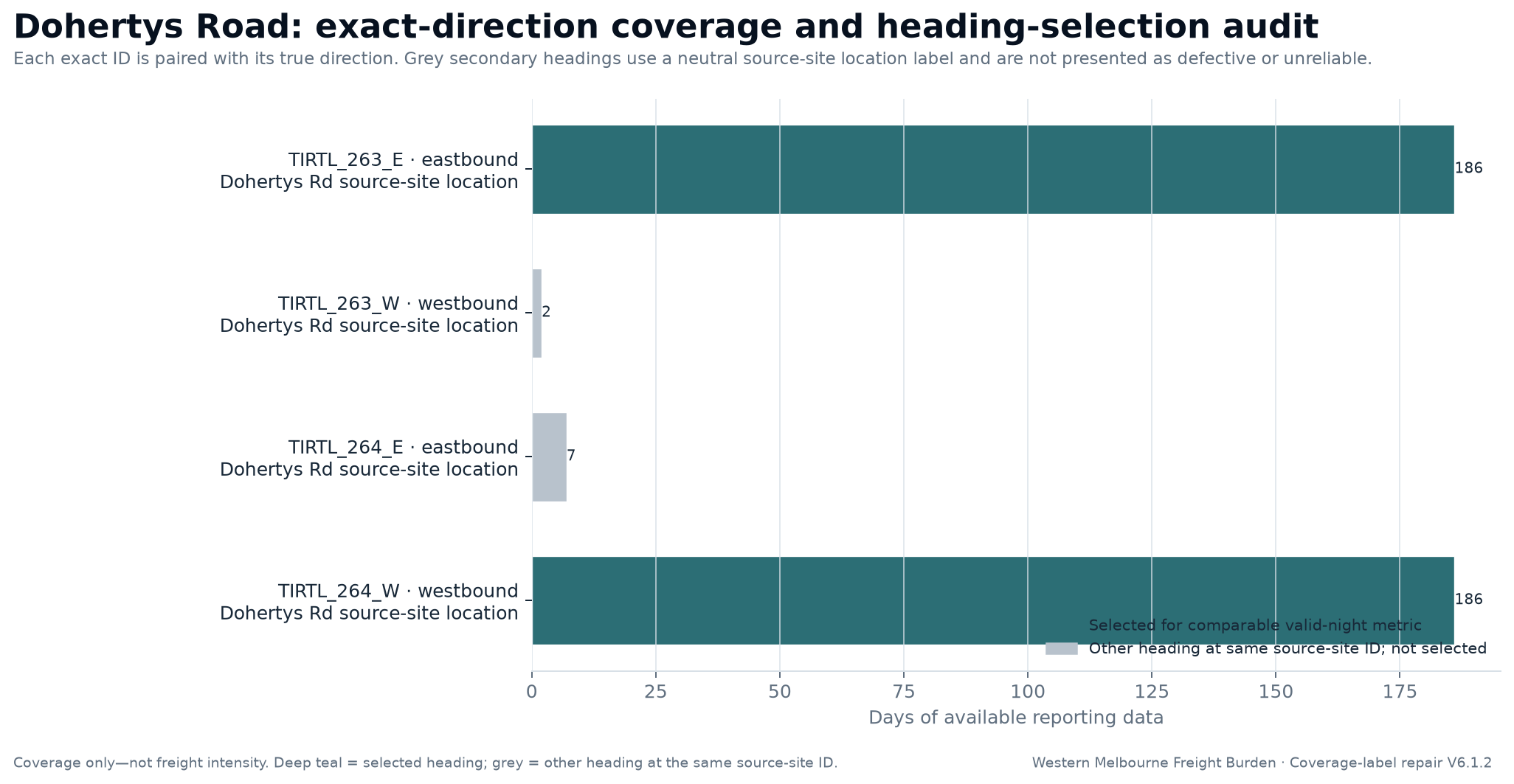

Dohertys Road: technical coverage and selection auditTechnical

Dohertys Road: technical coverage and selection audit

All heading records at the relevant source-site IDs. Grey records are not selected for this corridor metric and are not thereby labelled defective.

SVG
Dohertys Road: average daily truck passingsSupporting

Dohertys Road: average daily truck passings

Average all-day classified truck passings per day of available data by exact contributing site-heading ID.

SVG

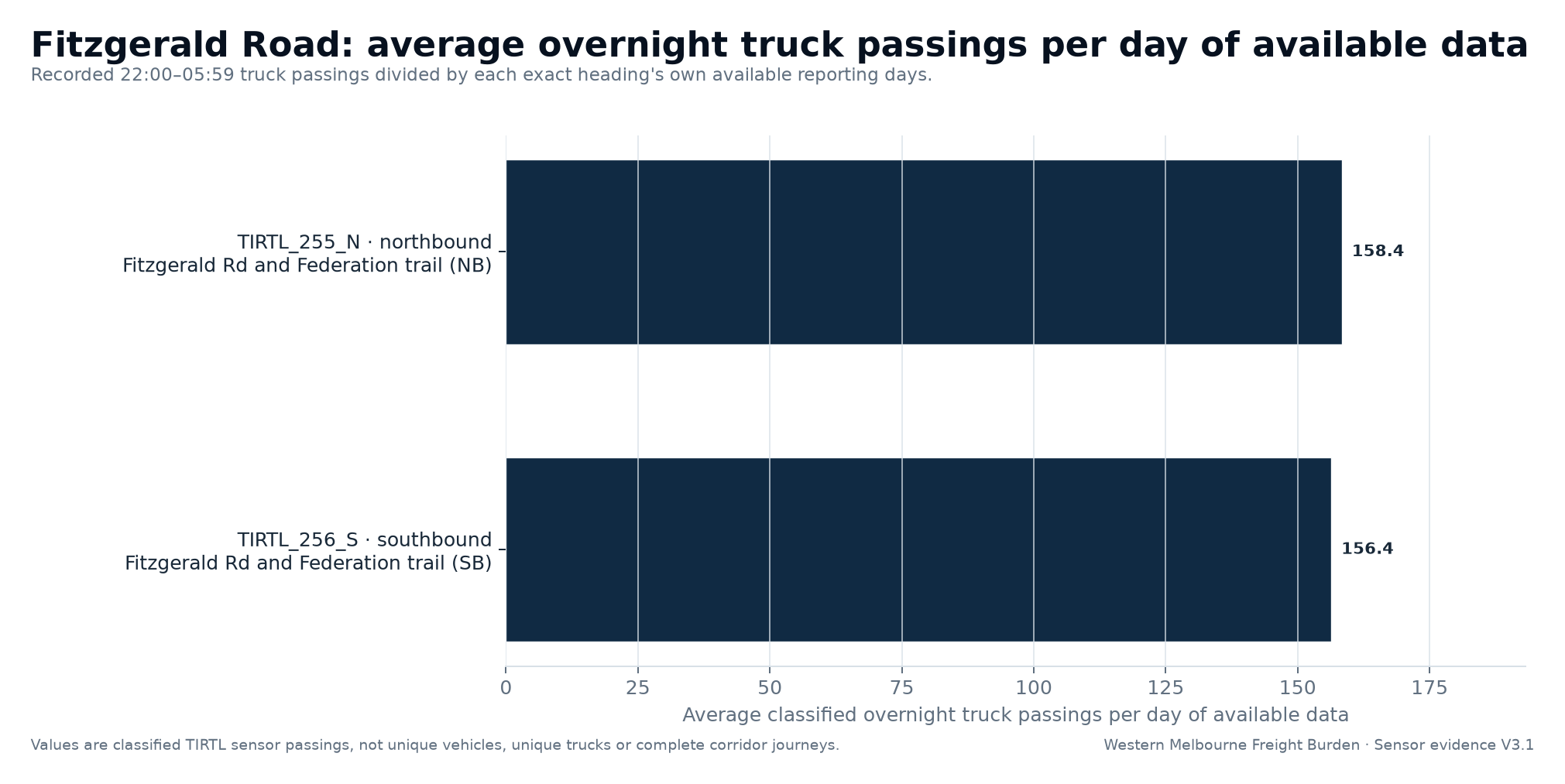

Fitzgerald Road: average overnight passingsHeadline

Fitzgerald Road: average overnight passings

Average overnight truck passings per day of available data by exact contributing site-heading ID and location label.

SVG

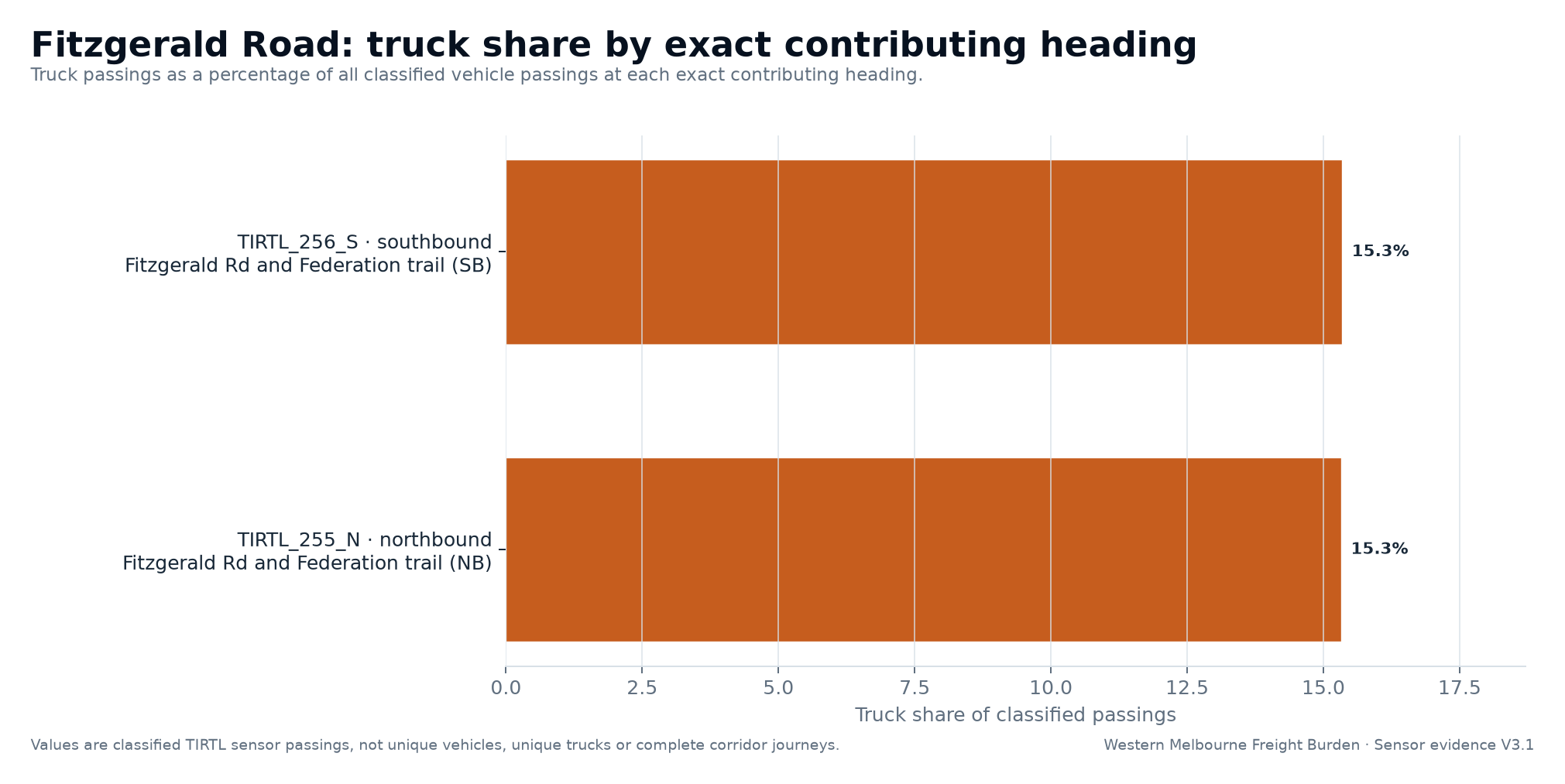

Fitzgerald Road: truck shareHeadline

Fitzgerald Road: truck share

Truck passings as a share of classified movements at each exact contributing heading.

SVG

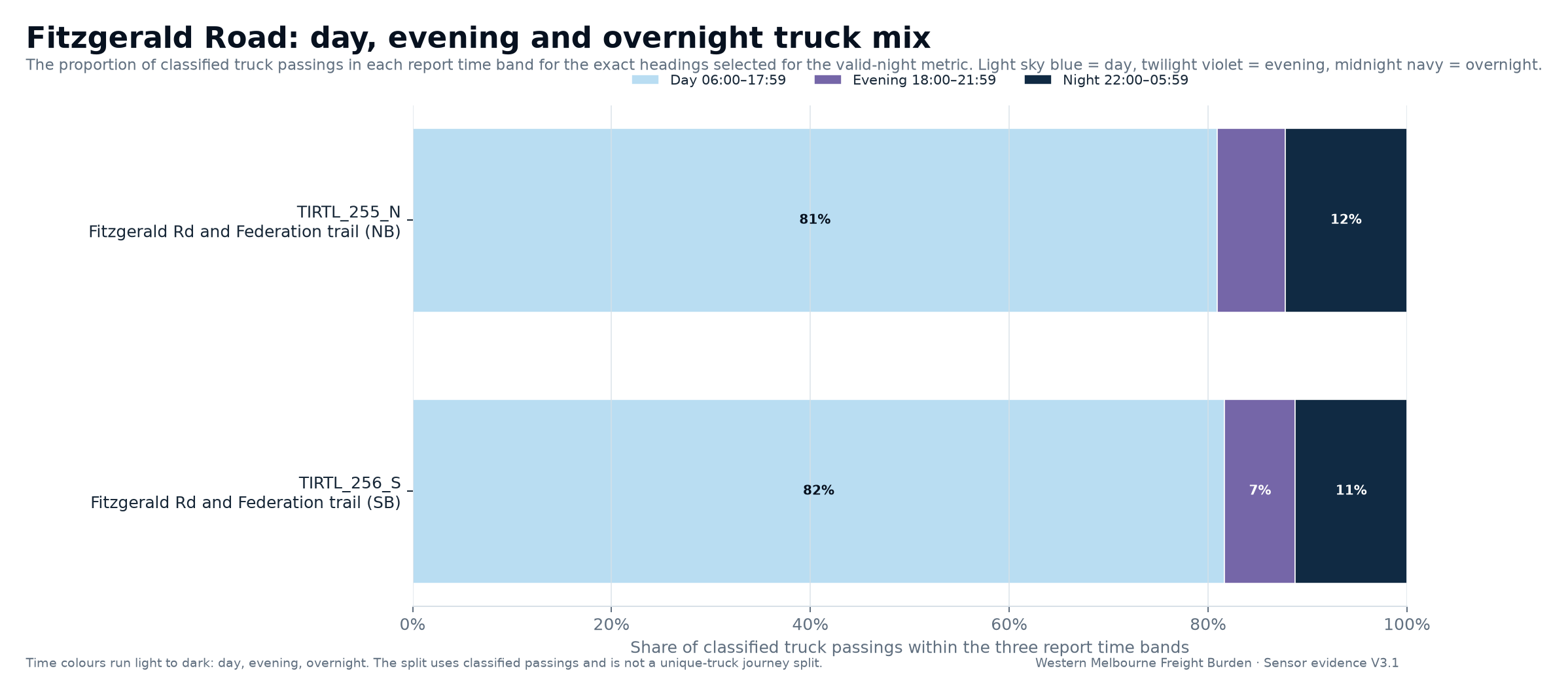

Fitzgerald Road: time-band mixHeadline

Fitzgerald Road: time-band mix

Day, evening and overnight composition by exact contributing heading and monitoring-site label.

SVG

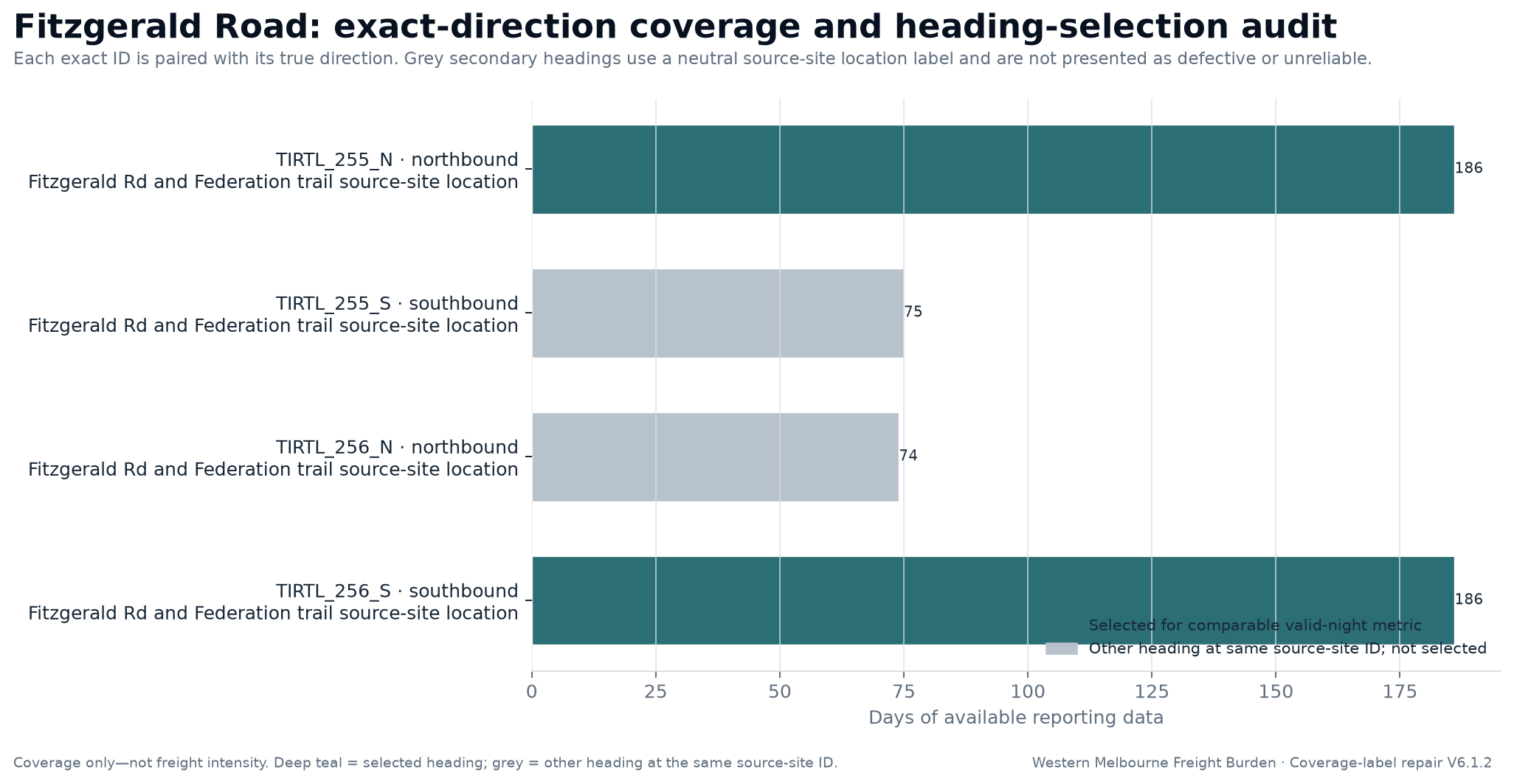

Fitzgerald Road: technical coverage and selection auditTechnical

Fitzgerald Road: technical coverage and selection audit

All heading records at the relevant source-site IDs. Grey records are not selected for this corridor metric and are not thereby labelled defective.

SVG

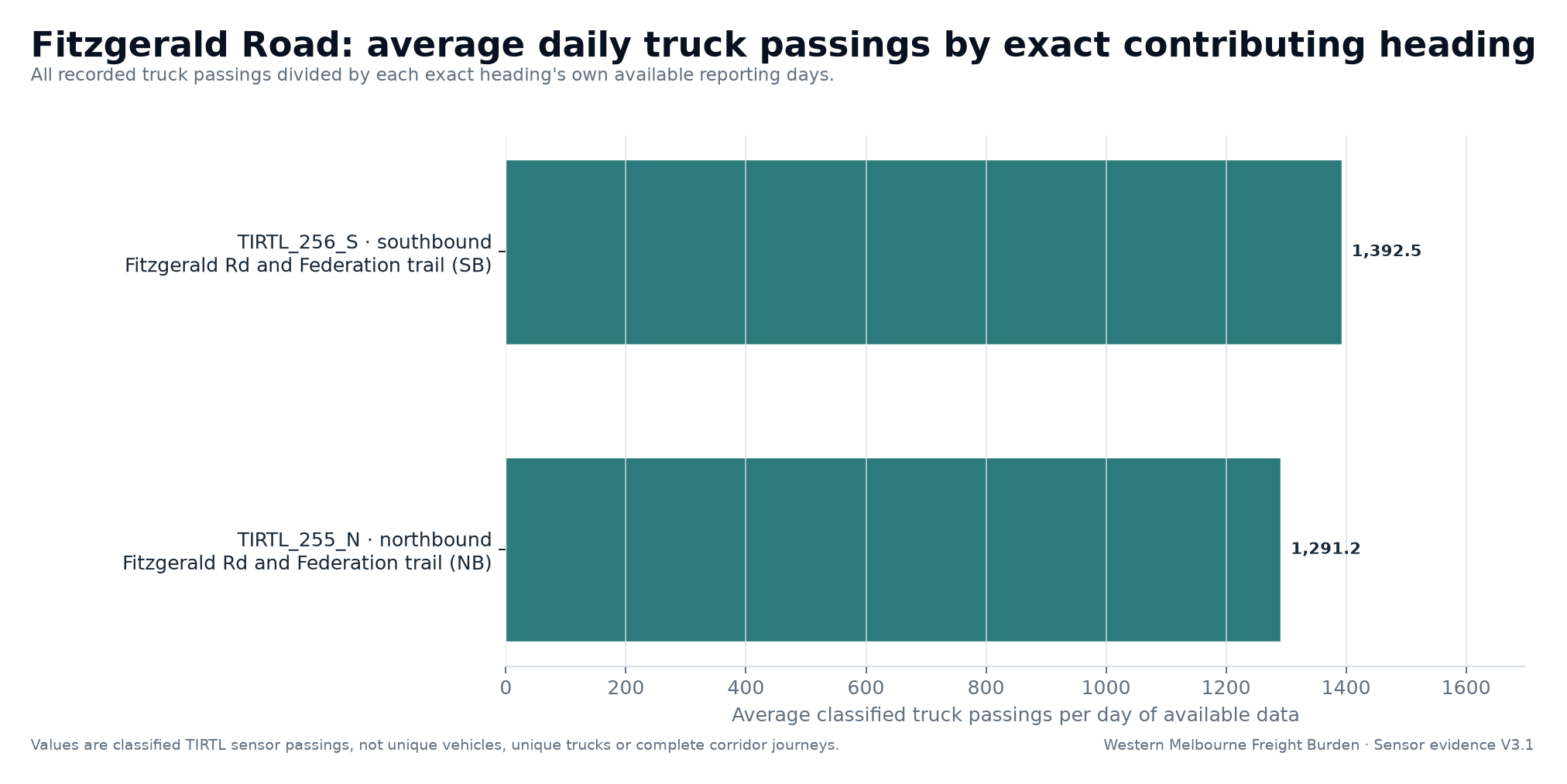

Fitzgerald Road: average daily truck passingsSupporting

Fitzgerald Road: average daily truck passings

Average all-day classified truck passings per day of available data by exact contributing site-heading ID.

SVG

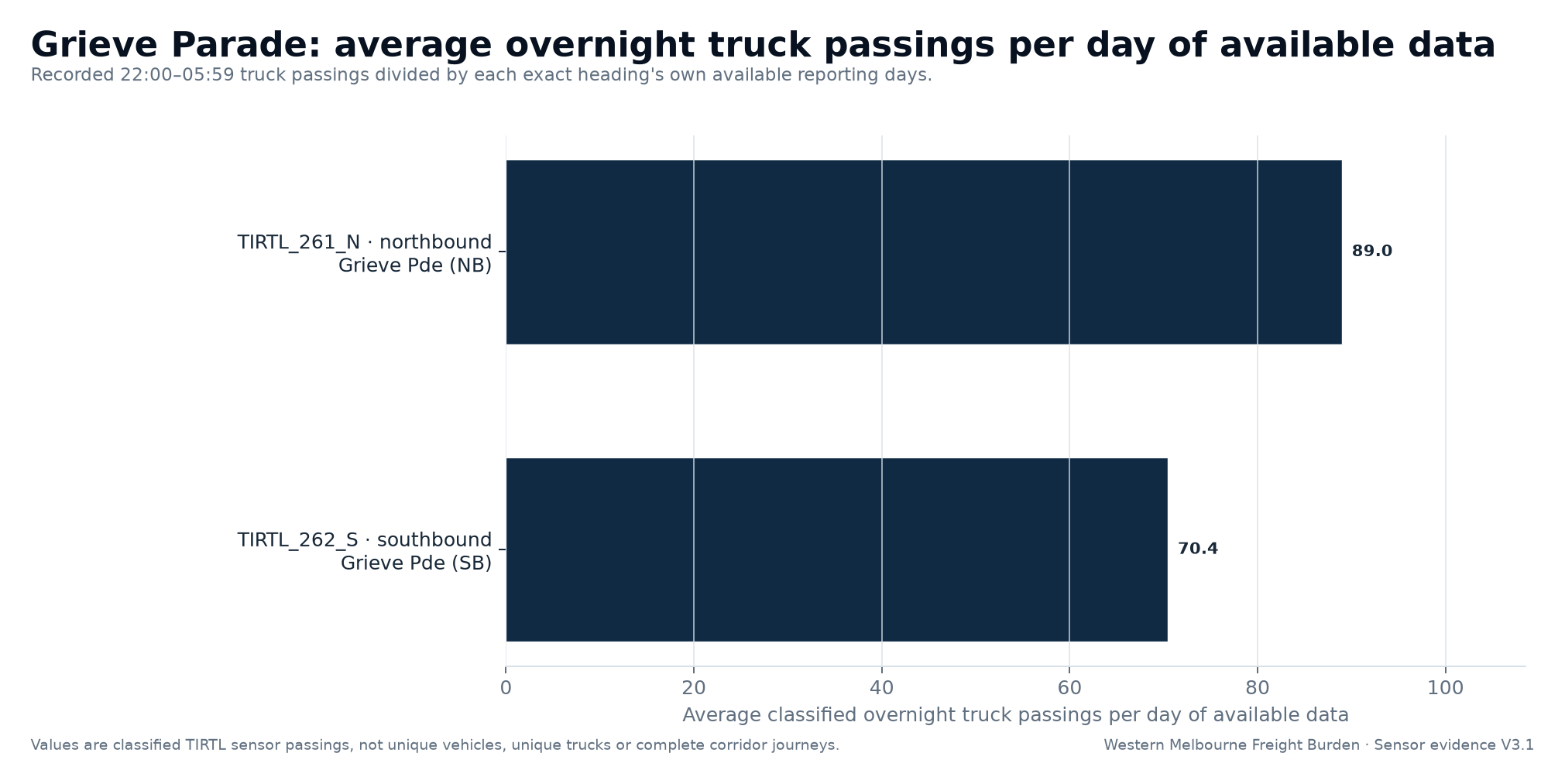

Grieve Parade: average overnight passingsHeadline

Grieve Parade: average overnight passings

Average overnight truck passings per day of available data by exact contributing site-heading ID and location label.

SVG

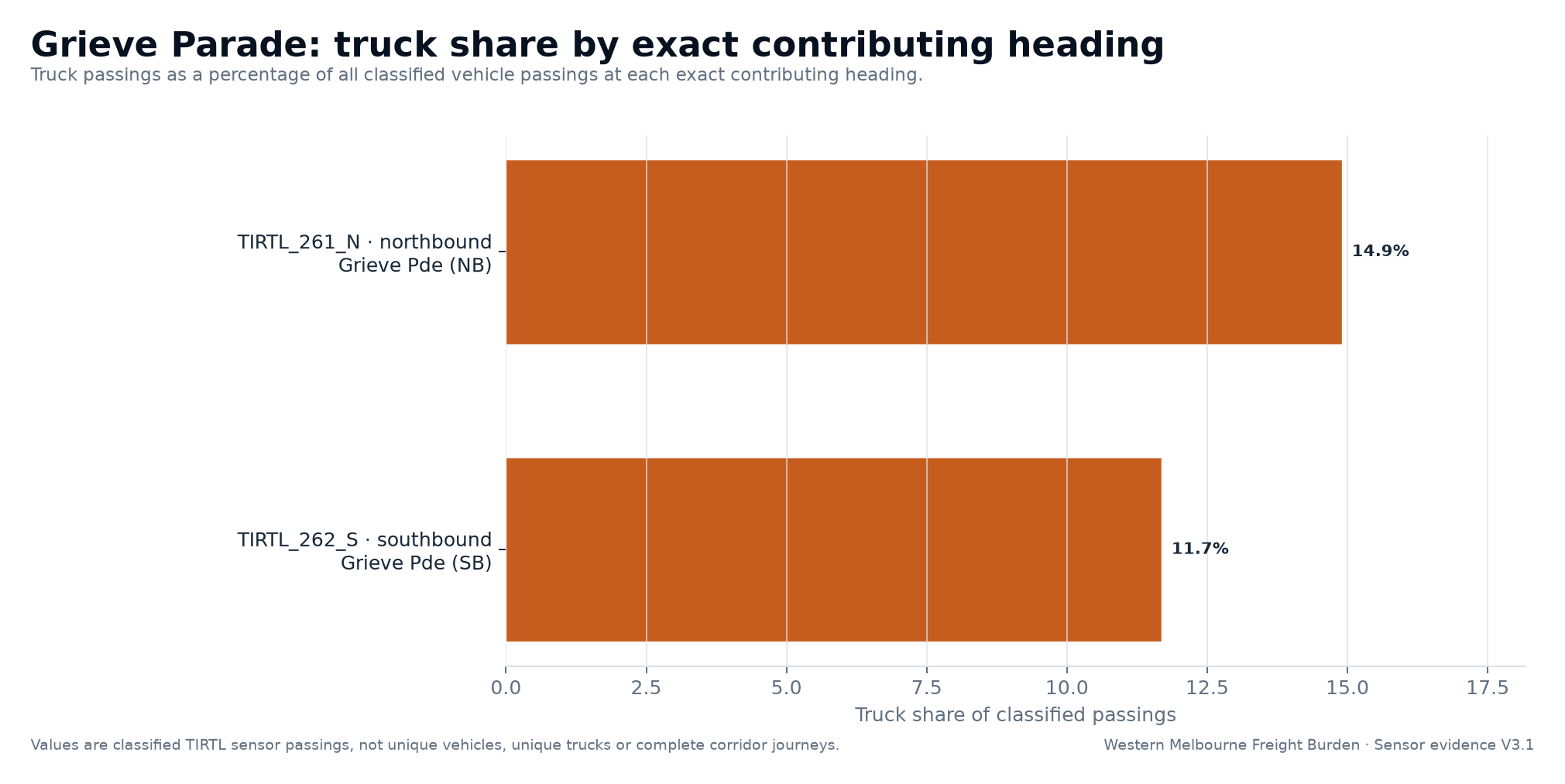

Grieve Parade: truck shareHeadline

Grieve Parade: truck share

Truck passings as a share of classified movements at each exact contributing heading.

SVG

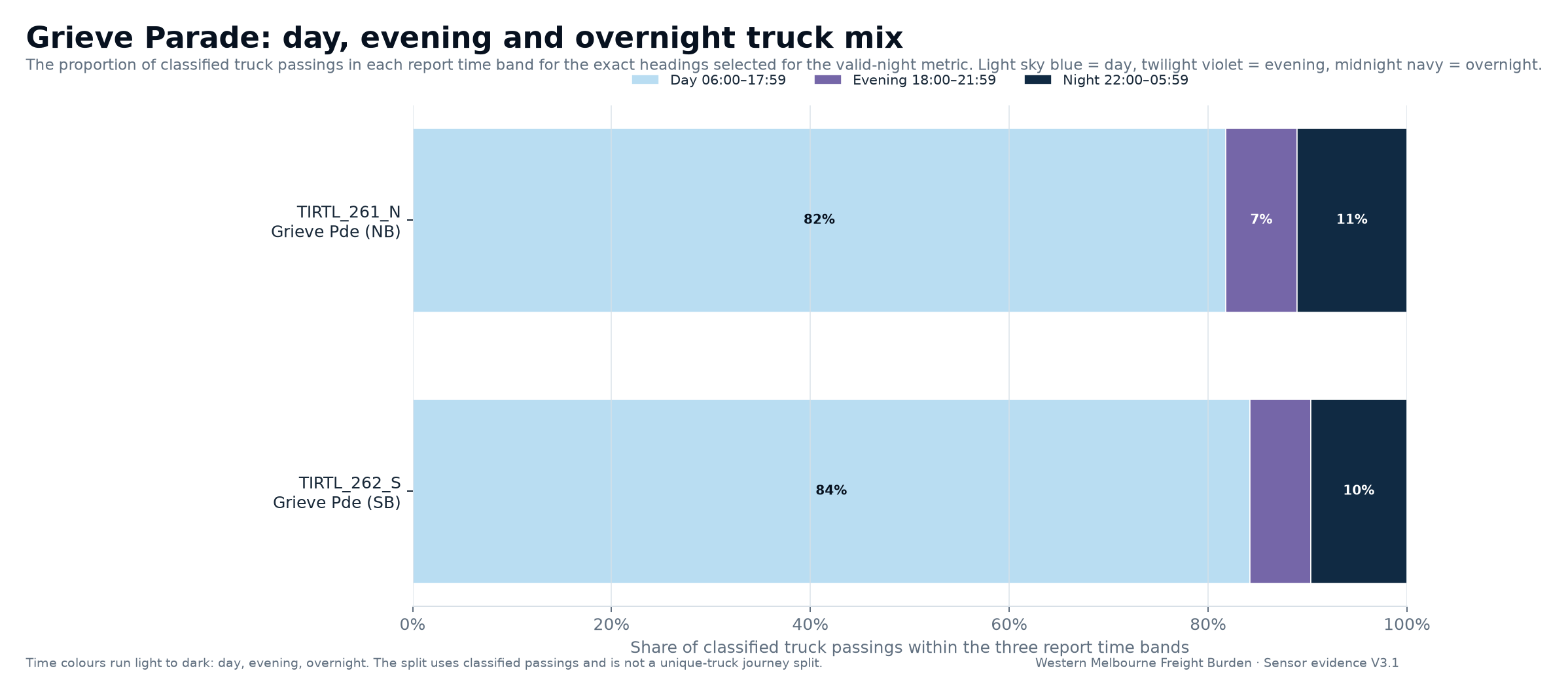

Grieve Parade: time-band mixHeadline

Grieve Parade: time-band mix

Day, evening and overnight composition by exact contributing heading and monitoring-site label.

SVG

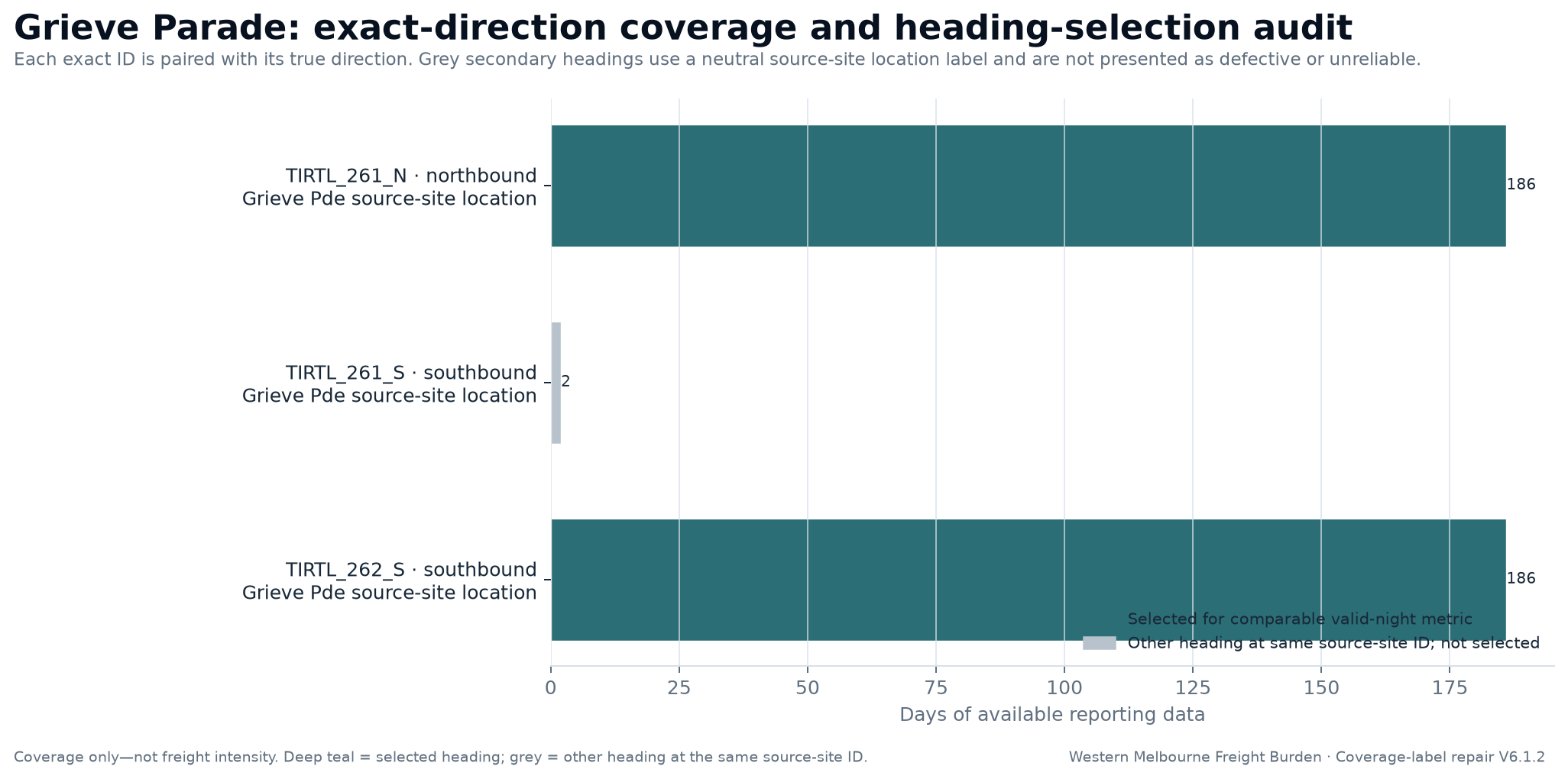

Grieve Parade: technical coverage and selection auditTechnical

Grieve Parade: technical coverage and selection audit

All heading records at the relevant source-site IDs. Grey records are not selected for this corridor metric and are not thereby labelled defective.

SVG

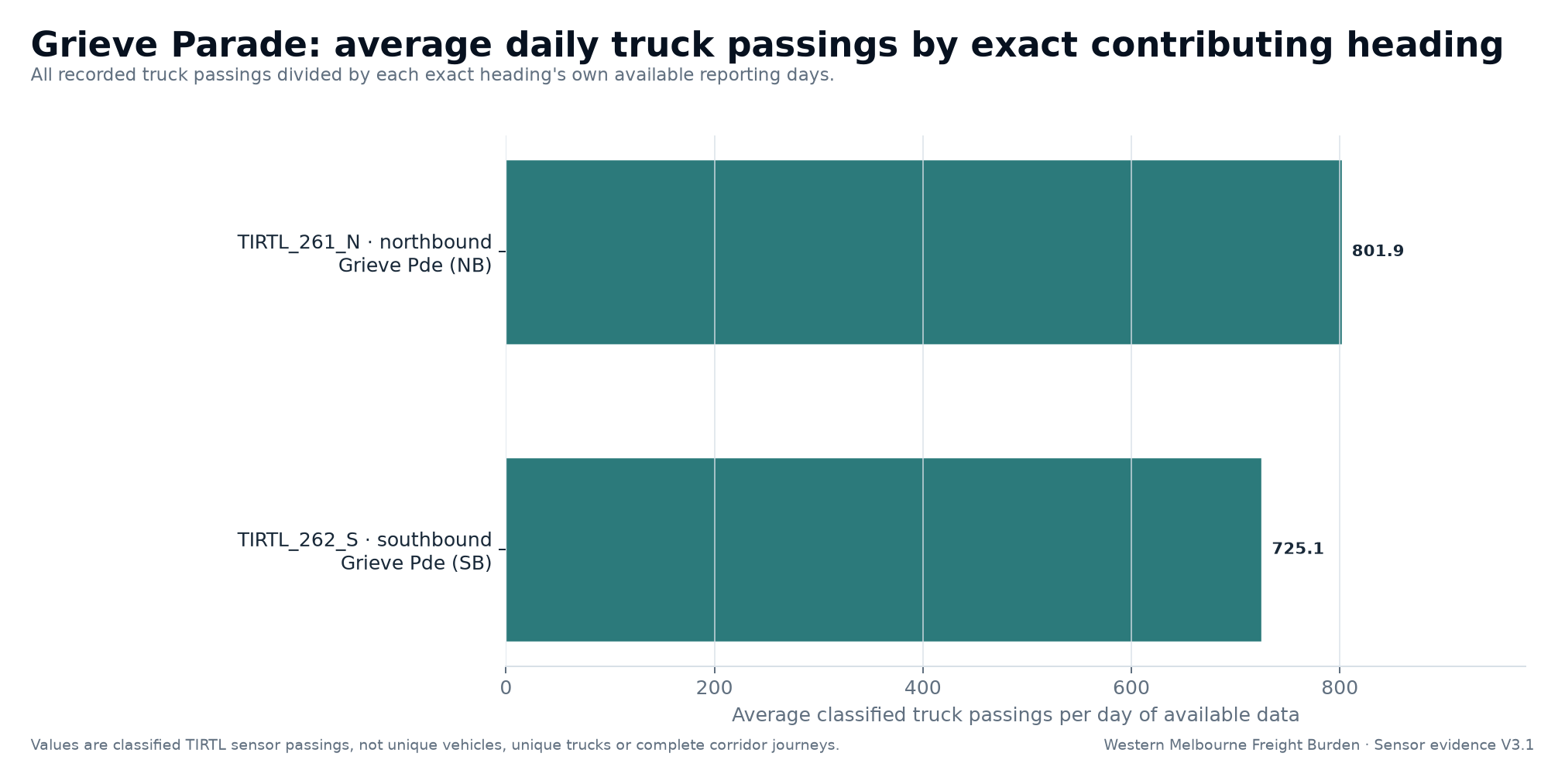

Grieve Parade: average daily truck passingsSupporting

Grieve Parade: average daily truck passings

Average all-day classified truck passings per day of available data by exact contributing site-heading ID.

SVG

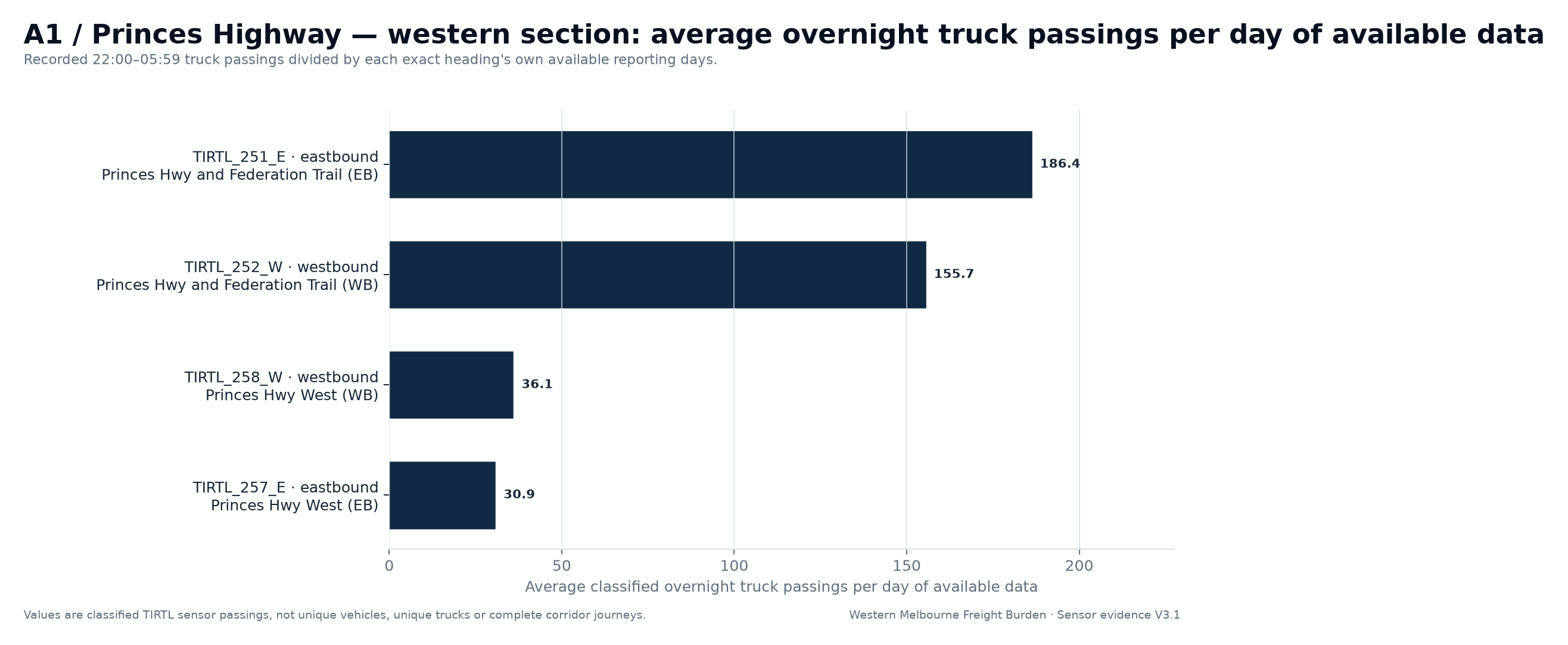

A1 / Princes Highway — western section: average overnight passingsHeadline

A1 / Princes Highway — western section: average overnight passings

Average overnight truck passings per day of available data by exact contributing site-heading ID and location label.

SVG

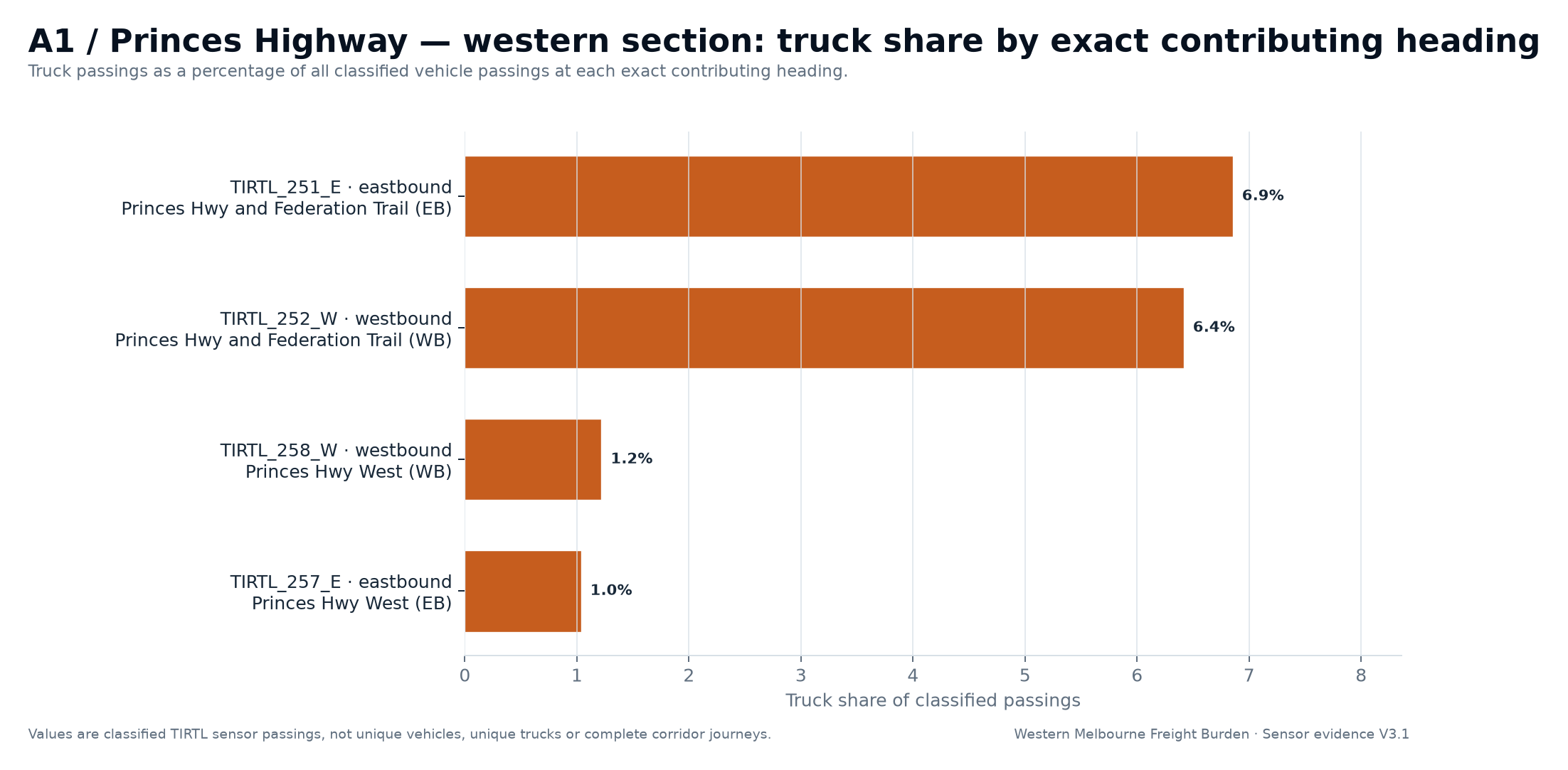

A1 / Princes Highway — western section: truck shareHeadline

A1 / Princes Highway — western section: truck share

Truck passings as a share of classified movements at each exact contributing heading.

SVG

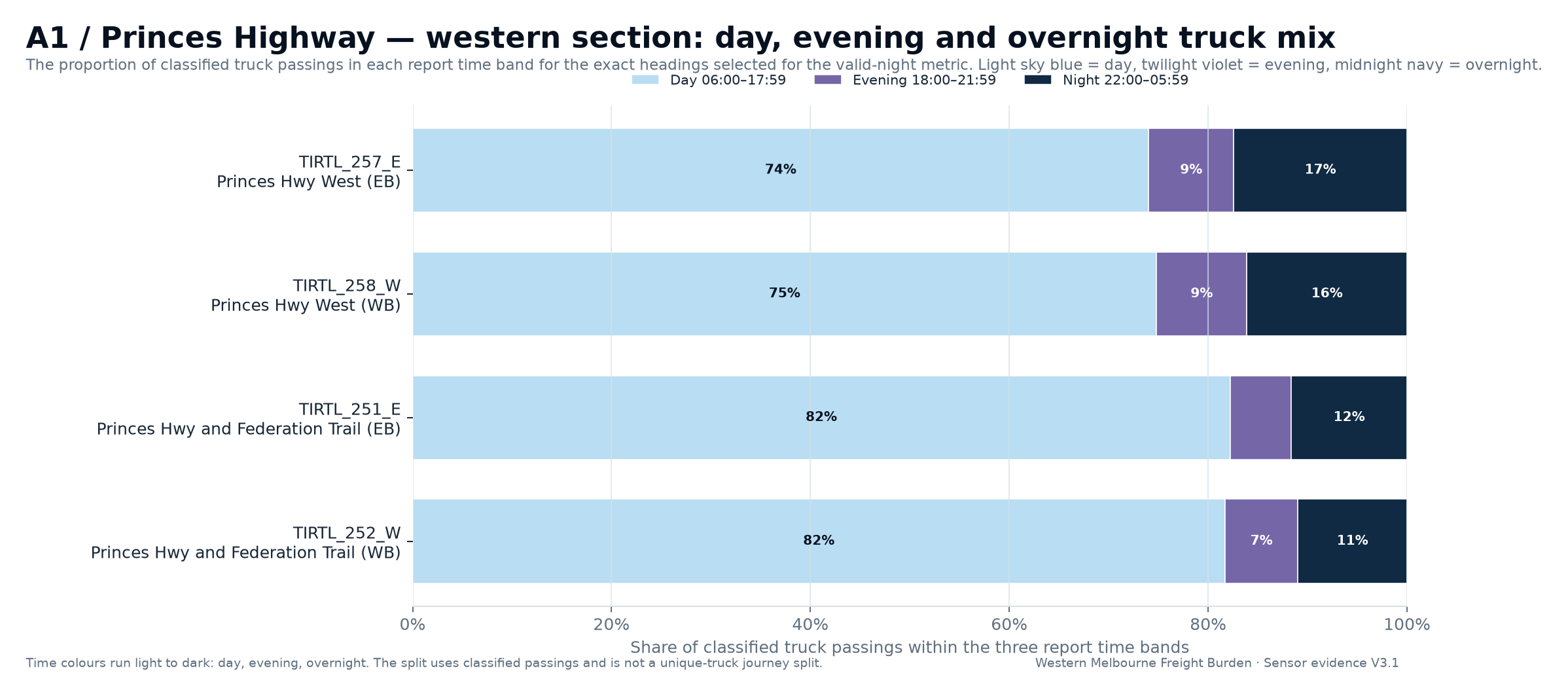

A1 / Princes Highway — western section: time-band mixHeadline

A1 / Princes Highway — western section: time-band mix

Day, evening and overnight composition by exact contributing heading and monitoring-site label.

SVG

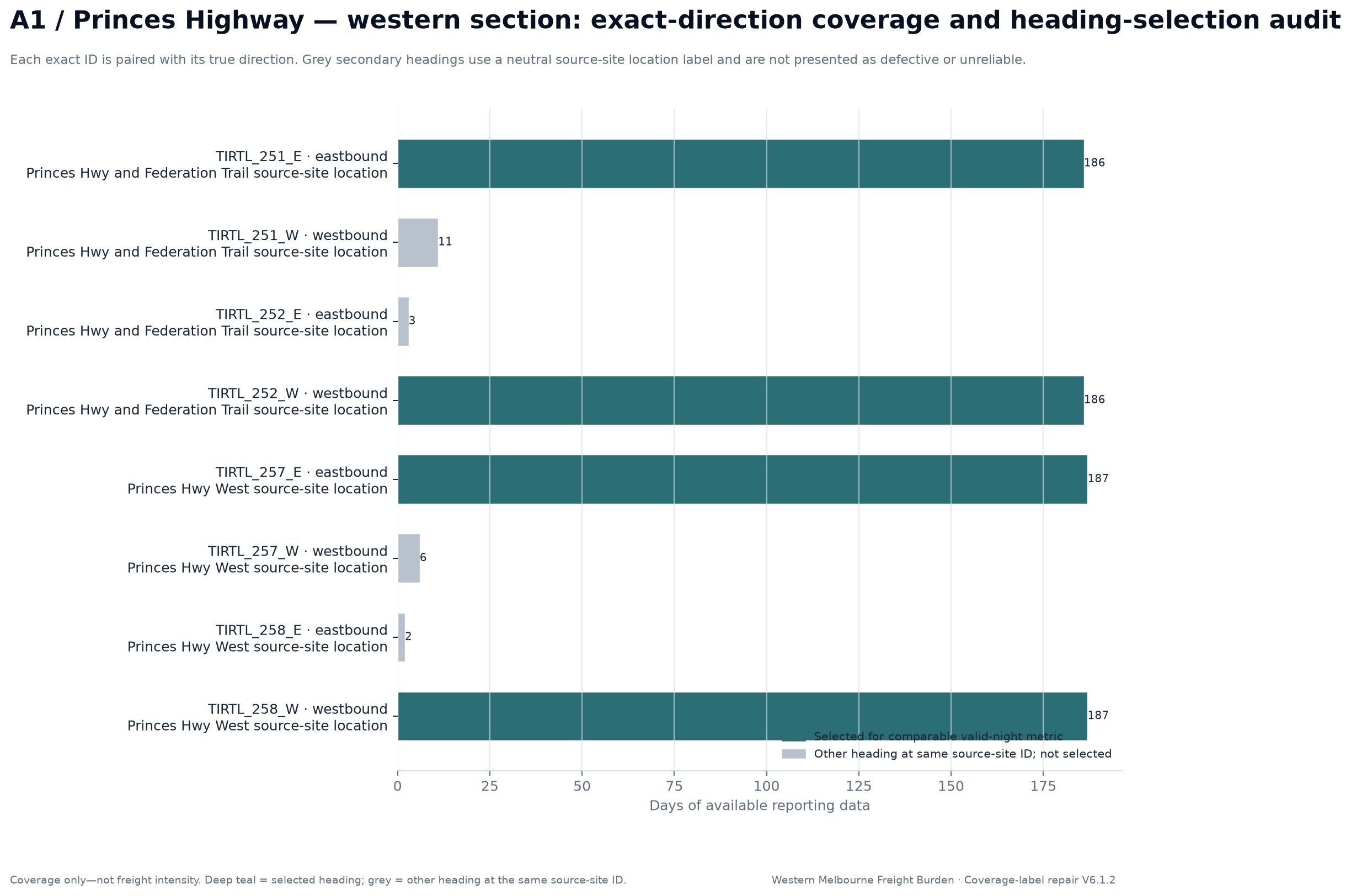

A1 / Princes Highway — western section: technical coverage and selection auditTechnical

A1 / Princes Highway — western section: technical coverage and selection audit

All heading records at the relevant source-site IDs. Grey records are not selected for this corridor metric and are not thereby labelled defective.

SVG

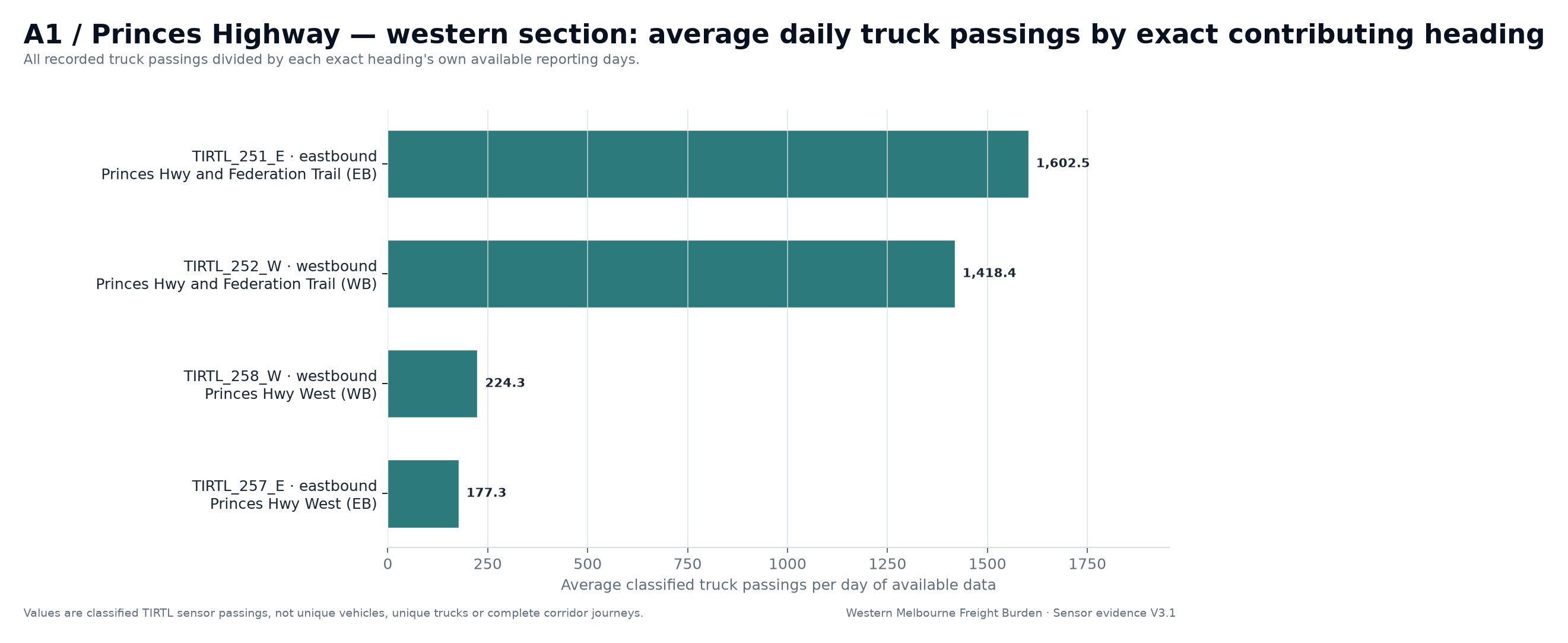

A1 / Princes Highway — western section: average daily truck passingsSupporting

A1 / Princes Highway — western section: average daily truck passings

Average all-day classified truck passings per day of available data by exact contributing site-heading ID.

SVG

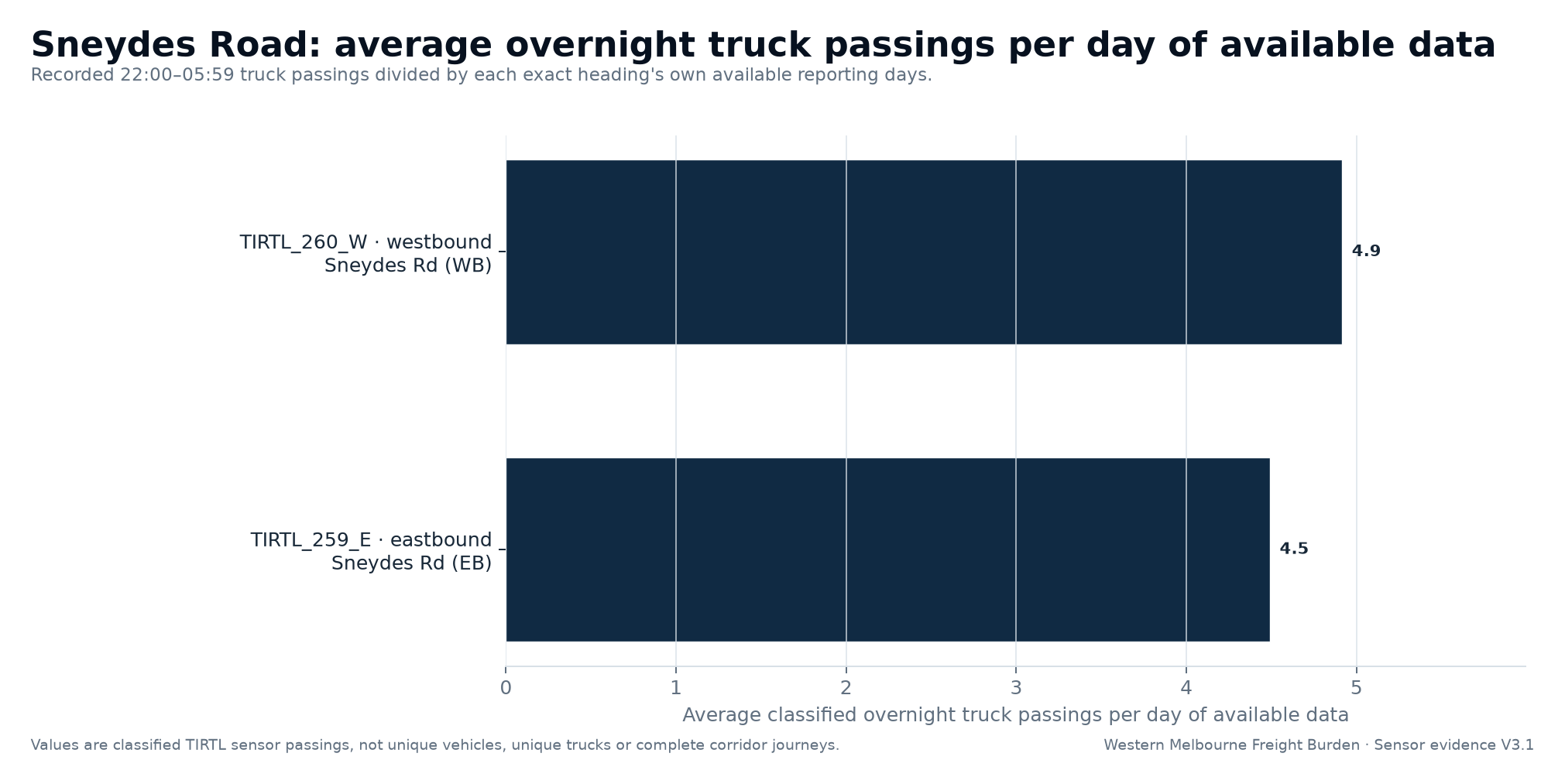

Sneydes Road: average overnight passingsHeadline

Sneydes Road: average overnight passings

Average overnight truck passings per day of available data by exact contributing site-heading ID and location label.

SVG

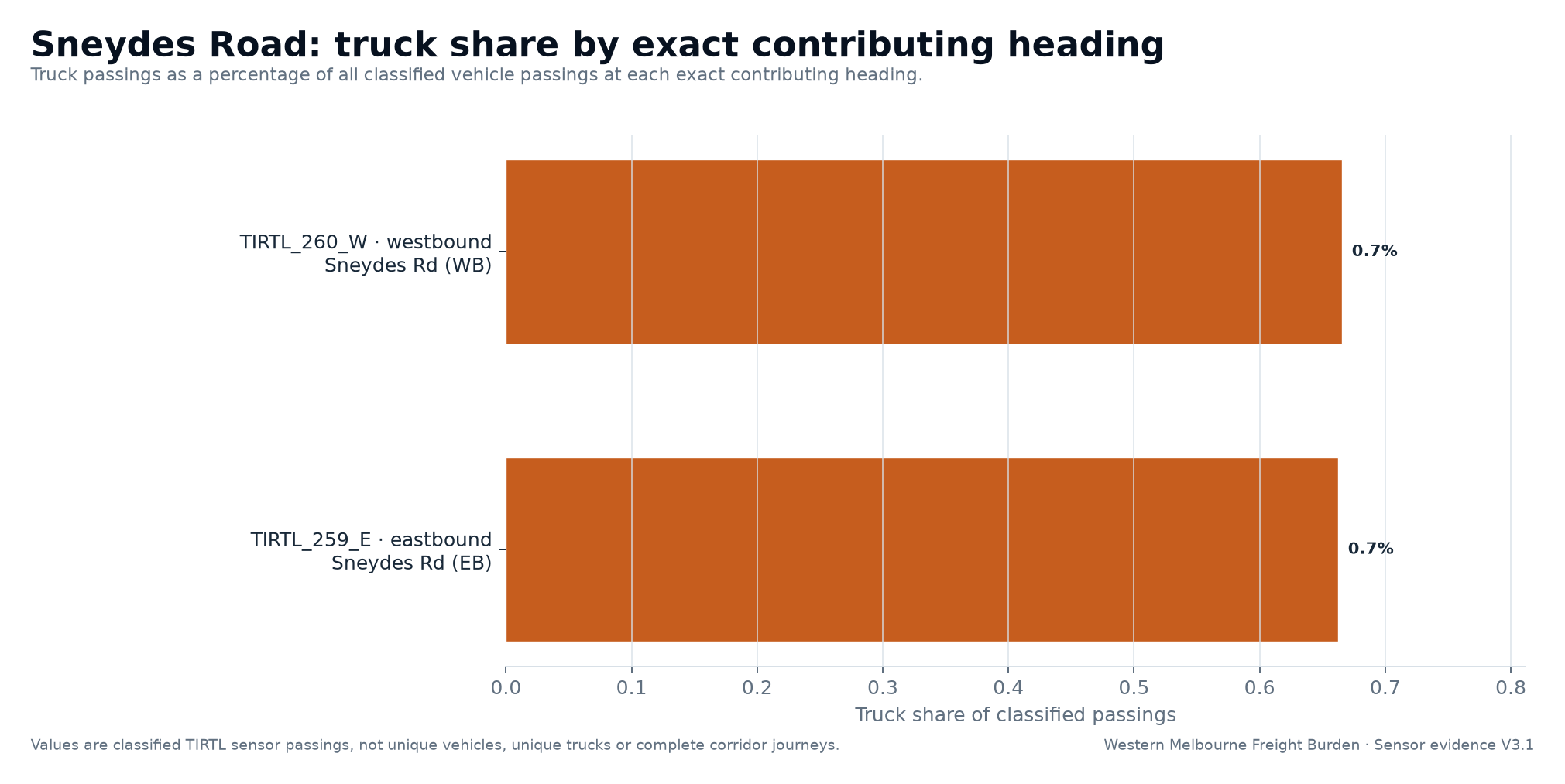

Sneydes Road: truck shareHeadline

Sneydes Road: truck share

Truck passings as a share of classified movements at each exact contributing heading.

SVG

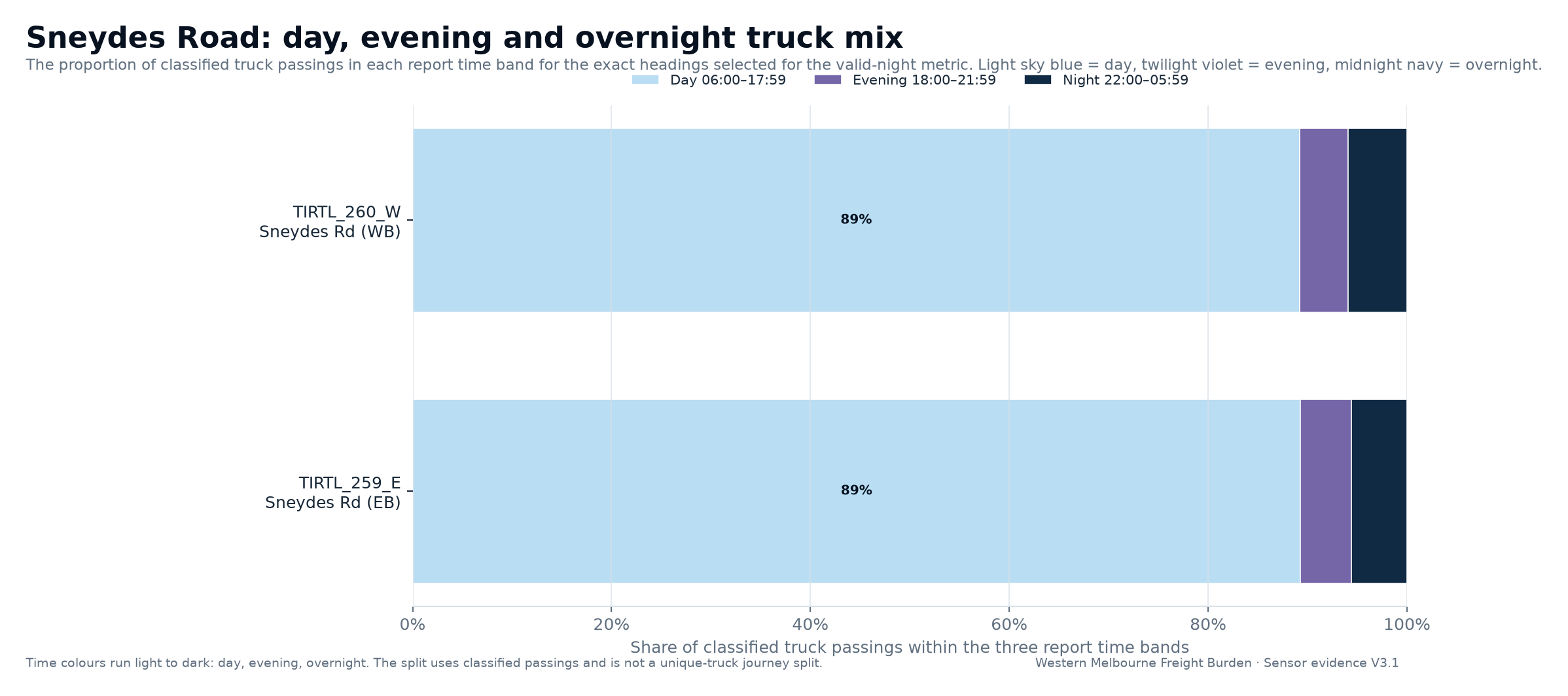

Sneydes Road: time-band mixHeadline

Sneydes Road: time-band mix

Day, evening and overnight composition by exact contributing heading and monitoring-site label.

SVG

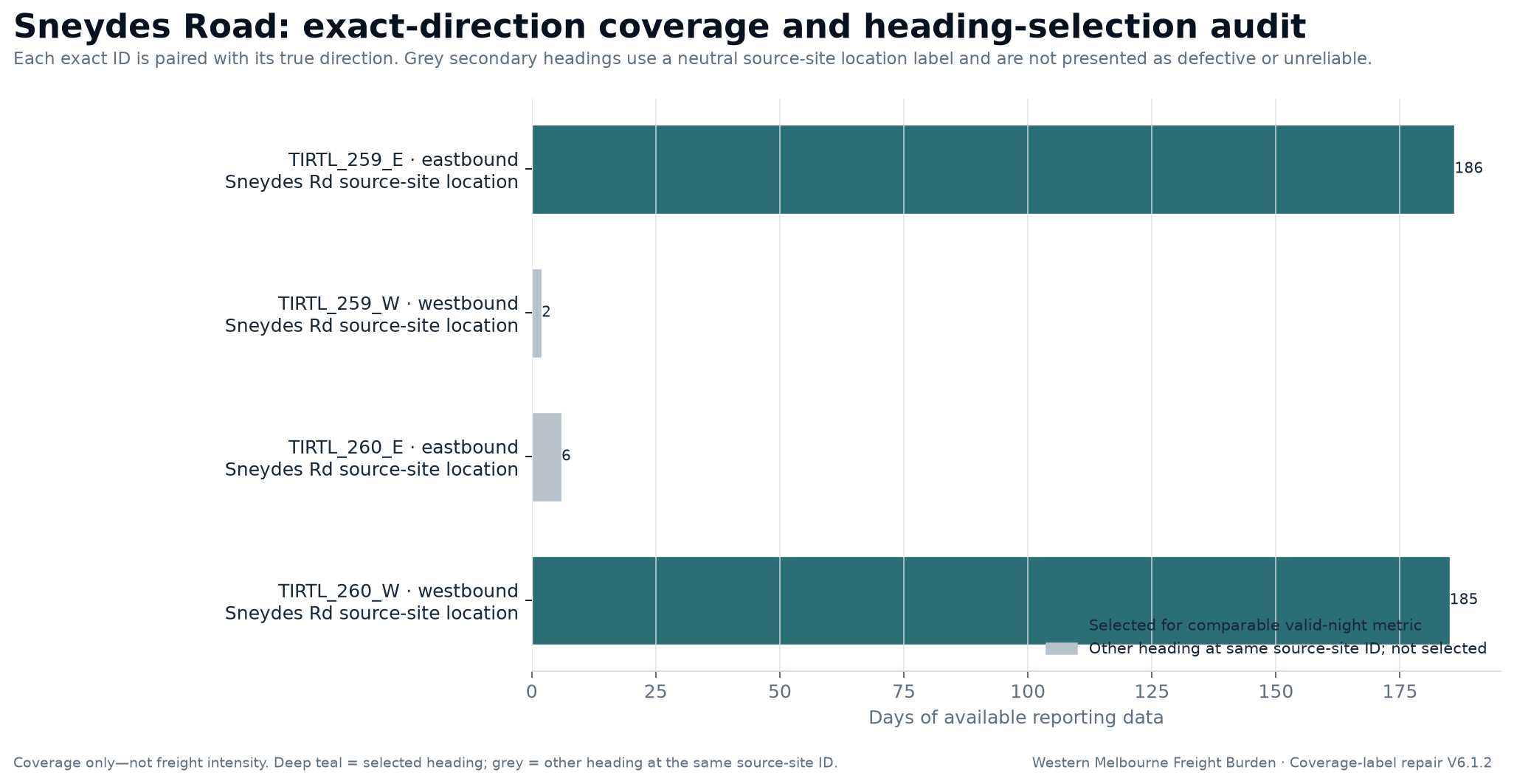

Sneydes Road: technical coverage and selection auditTechnical

Sneydes Road: technical coverage and selection audit

All heading records at the relevant source-site IDs. Grey records are not selected for this corridor metric and are not thereby labelled defective.

SVG

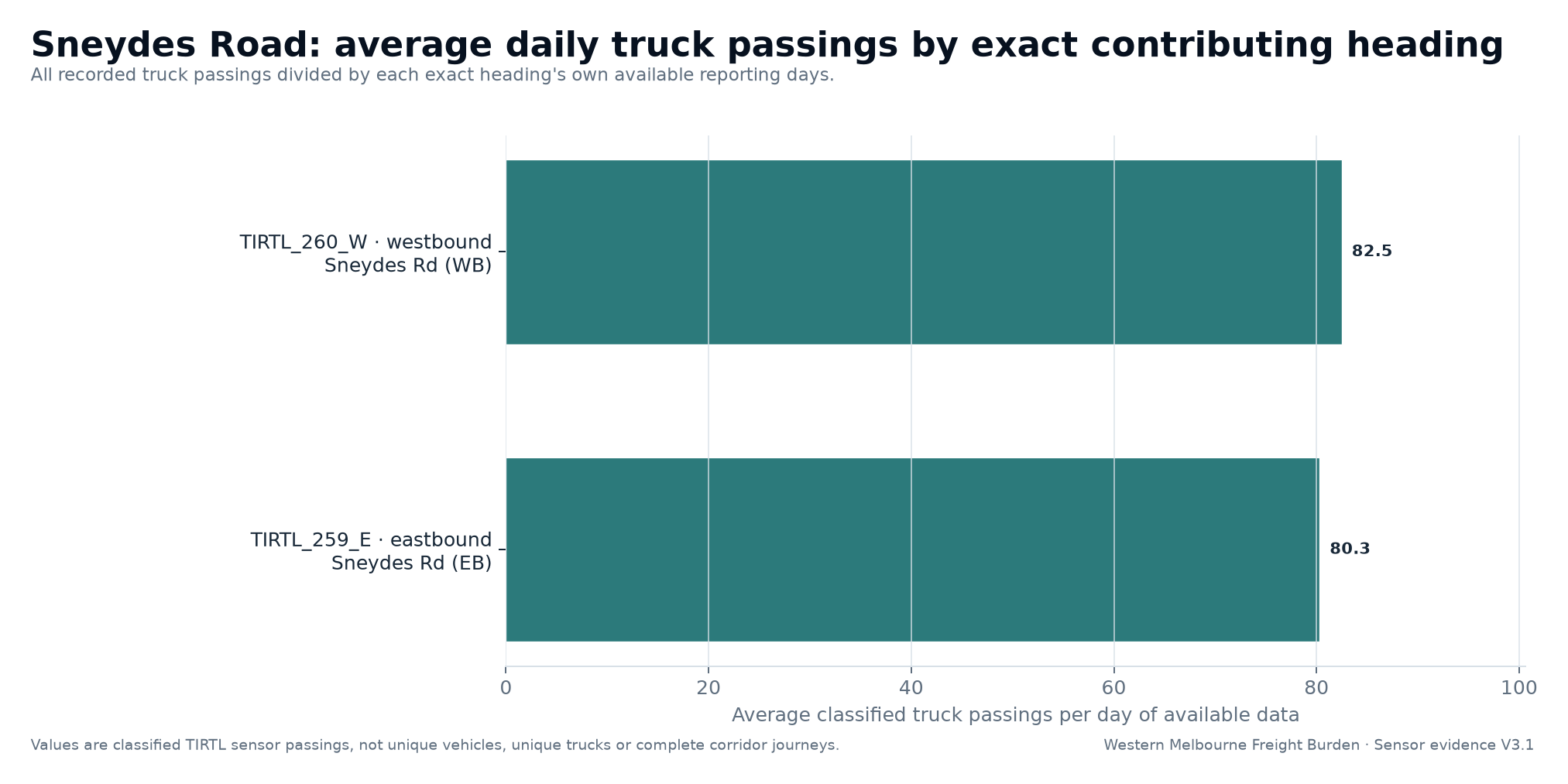

Sneydes Road: average daily truck passingsSupporting

Sneydes Road: average daily truck passings

Average all-day classified truck passings per day of available data by exact contributing site-heading ID.

SVG
